Mini Excavator Rental

John Deere 17D

Rates Day Week Month
Regular
 $230 $1,075
$2,450
Corporate
 $220 $950
$2,350
+ Delivery Rate & Operator Rate
Guarantee logo

We honor the lowest rate on all long term rentals

Rent Now Call Us
Product Image

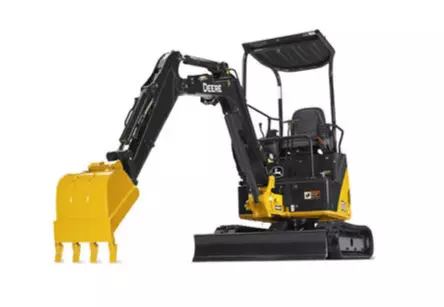

Will you be working in tight quarters? If your commercial or residential project requires the nimbleness and agility of a mini excavator, consider the versatile and powerful John Deere 17D Mini Excavator. if you're going to rent a mini excavator for this kind of work, you will be pleased to know it has a maximum digging depth of 7 feet and 1 inch along with a digging reach of 12 feet 10 inches for those challenging projects. If you need a little more muscle and size, the next model in the John Deere mini excavator lineup after the 17D is the John Deere 27D Mini Excavator.
A truly powerful engine
The 17D comes equipped with a high drawbar pulling force that provides the required muscle for backfilling trenches or handling the transportation of heavy materials.
Small and nimble
The 17D has an independent-swing boom with a rotation of 360 degrees. This level of rotation is such that you can use the mini excavator to dig in places where shovels used to be your only alternative.
Enhanced visibility
The 17D provides the operator with complete visibility. This is very important when it comes to maximizing productivity and on the job safety.
Extremely flexible
The 17D is extremely versatile thanks to the various attachment options (which you can order when you rent a mini excavator).
What kind of projects can a John Deere 17D Mini Excavator rental handle for you?
  • You could demolish a house
  • You could dig up electrical conduit
  • You could completely demolish tough concrete by renting the optional hammer attachment
  • It would be a piece of cake to backfill trenches
  • The same goes for digging trenches - a piece of cake!
  • If you had a property that required landscaping, a mini excavator is the perfect choice
  • Construction sites usually leave quite a mess - no need to leave a mess behind when you have a mini excavator rental working for you
  • Perhaps you need to install some fence poles - no problem
  • Mini excavators don't just tear things down... they're also great for doing nice things like planting trees
  • You might have a couple of stumps that you want to get rid of... done
  • Perfect for loading sand and gravel
  • Brush cutting is another perfect fit for the John Deere 17D mini excavator
We pride ourselves on giving our customers the kind of speedy delivery they like on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver and the Fraser Valley, including Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford. See our Delivery rates for more details.

Dimensions

Boom/Stick Option
A. Shipping Length of Unit 11.8 ft in 3590 mm
C. Shipping Height of Unit 7.9 ft in 2400 mm
I. Max Cutting Height 11.7 ft in 3560 mm
J. Max Loading Height 8.3 ft in 2530 mm
M. Max Digging Depth 7.1 ft in 2170 mm
Dimensions
B. Width to Outside of Tracks 4.2 ft in 1280 mm
D. Length of Track on Ground 4 ft in 1210 mm
E. Ground Clearance 0.54 ft in 165 mm
G. Height to Top of Cab 7.9 ft in 2400 mm
H. Tail Swing Radius 2.2 ft in 675 mm
O. Counterweight Clearance 1.4 ft in 435 mm
Undercarriage
F. Track Gauge 3.4 ft in 1050 mm
N. Shoe Size 9.1 ft in 230 mm

Specification

Engine
Make Yanmar
Model 3TNV70
Net Power 14.8 hp 11 kw
Power Measured @ 2400 rpm
Displacement 52.1 cu in 0.85 L
Aspiration Natural
Number of Cylinders 3
Operational
Operating Weight 4173 lb 1892.8 kg
Fuel Capacity 5.2 gal 19.7 L
Cooling System Fluid Capacity 0.71 gal 2.7 L
Hydrauilc System Fluid Capacity 5.3 gal 20.1 L
Engine Oil Capacity 0.82 gal 3.1 L
Alternator Supplied Amperage 40 amps
Hydraulic Pump Flow Capacity 13.5 gal/min 51.1 L/min
Swing Mechanism
Swing Speed 8.9 rpm
Undercarriage
Shoe Size 9.1 in 230 mm
Ground Pressure 4.1 psi 28.3 kPa
Max Travel Speed 2.7 mph 4.3 km/h
Track Gauge 3.4 ft in 1050 mm
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 3'1" (930mm) arm
Shipping Height of Unit 7.9 ft in 2400 mm
Shipping Length of Unit 11.8 ft in 3590 mm
Max Digging Depth 7.1 ft in 2170 mm
Max Cutting Height 11.7 ft in 3560 mm
Max Loading Height 8.3 ft in 2530 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2 3'8" (1130mm) arm
Shipping Height of Unit 7.9 ft in 2400 mm
Shipping Length of Unit 11.9 ft in 3640 mm
Max Digging Depth 7.8 ft in 2370 mm
Max Cutting Height 12 ft in 3660 mm
Max Loading Height 8.6 ft in 2630 mm
Dimensions
Width to Outside of Tracks 4.2 ft in 1280 mm
Height to Top of Cab 7.9 ft in 2400 mm
Shipping Length of Unit 11.9 ft in 3640 mm
Ground Clearance 0.54 ft in 165 mm
Counterweight Clearance 1.4 ft in 435 mm
Tail Swing Radius 2.2 ft in 675 mm
Length of Track on Ground 4 ft in 1210 mm
